CODE MODEL LENGTH (MM)
44016 Stopper KSmall CR-NI 36

CODE MODEL LENGTH(MM)
44017 Stopper Big CR-NI 63

CODE MODEL LENGTH(MM)

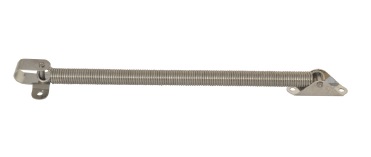

11018 Hatch Spring CR-NI 21
11019 Hatch Spring CR-NI 26

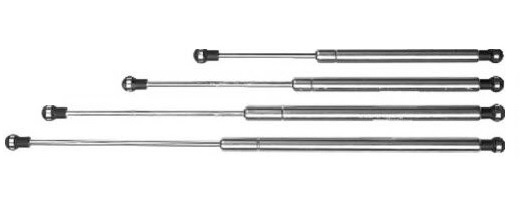

Gas Spring Stainless

CODE END FITTING TYPE(MM) END FITTING TYPE(MM) LENGTH COMPRESSED(MM) LENGTH EXTENDED(MM) OUTPUT FORCE(KG)
64001 6 15 55,5 190,5 10
64002 6 15 81 254 15
64003 6 15 93 305 20
64004 8 18 150 388 25
64005 8 18 213 508 35
64006 10 22 711 302 45

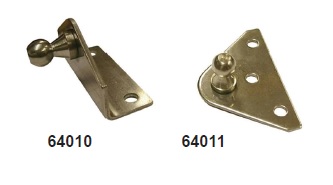

CODE MODEL
64010 Gas Spring Mounting Bracket L Type
64011 Gas Apring Mounting Bracket Flat Type

CODE MDOEL WIDTH(MM) LENGTH(MM)
44003 The Down Ring CR-NI No:1 21 51

CODE MODEL WIDTH(MM) LENGTH(MM)
44002 The Down Ring CR-NI No:2 25 67

CODE MODEL WIDTH(MM) LENGTH(MM)
44001 The Down Ring CR-NI No:3 31 83

CODE MDOEL
43049 Oarlock Set CR-NI

CODE MODEL
43040 Spare Part CR-NI

CODE MODEL
43060 Oarlock Steel Reinforced ABS

CODE MDOEL
43061 Oarlock Steel Reinforced Black ABS

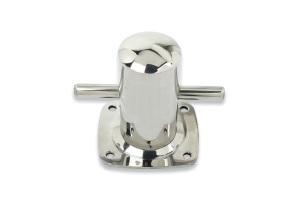

Bollard Single CR-NI

CODE DIAMETER(MM)
43007 19
43008 25
43009 30
430010 40
43011 60
43012 80

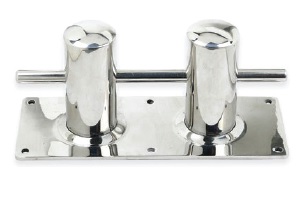

Bollard Double CR-NI

CODE DIAM.(MM) WIDTH (MM) LENGTH(MM) HEIGHT(MM)
43001 19 43 132 70
43002 25 50 160 85
43003 30 55 170 90
43004 40 80 210 115
43005 60 100 250 120
43006 80 140 270 160

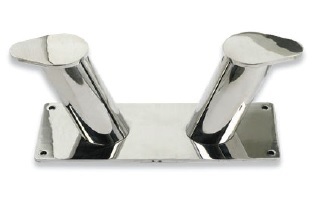

Bollard Model V

CODE WIDTH (MM) LENGTH(MM) HEIGHT(MM)
43140 45 170 60
43141 55 200 75
43142 80 300 100
43143 100 370 115

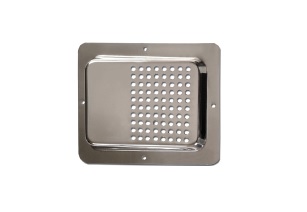

Strainer CR-NI

CODE MODEL WIDTH (MM) LENGTH(MM)
43027 No:1 85 110
43028 No:2 105 150
43029 No:3 140 190
43090 No:4 200 240

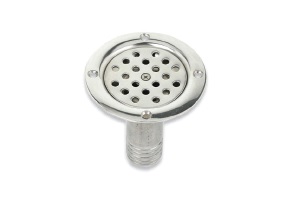

CODE MODEL DIAM.(MM)
43032 Deck Floor Strainer 25
43033 Deck Floor Strainer 30
43034 Deck Floor Strainer 38

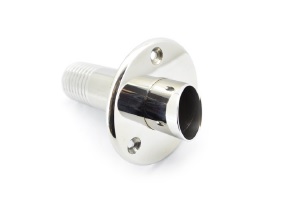

Exhaust Connection

CODE DIAM. (MM)
43020 38
43021 42
43022 50
43023 60
43024 75
43025 90
43026 100

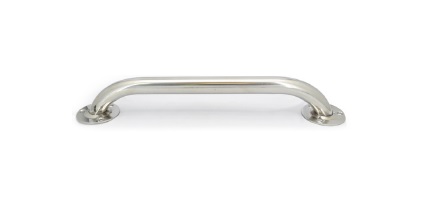

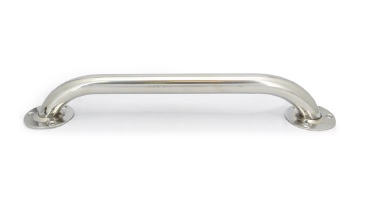

Handle CR-NI

CODE DIAM. (MM) LENGTH(MM)
43015 21 250
43016 21 300
43017 21 400
43018 21 500
43019 21 600
43101 21 700

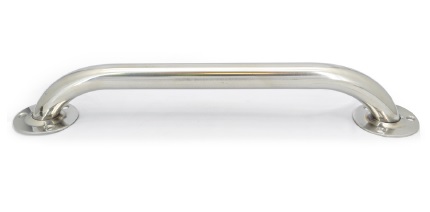

Handle CR-NI

CODE DIAM. (MM) LENGTH(MM)
43102 25 350
43103 25 450
43104 25 600
43105 25 750
43106 25 900
43107 25 1100

Handle CR-NI

CODE DIAM. (MM) LENGHT(MM)
43108 25 1300
43109 25 1500
43110 25 1750
43111 25 2000

Handle CR-NI

CODE DIAM. (MM) LENGTH(MM)
43041 20 200
43042 20 300
43043 20 400
43044 20 500
43045 20 600
43046 20 750
43047 20 1000

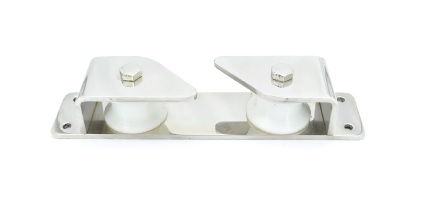

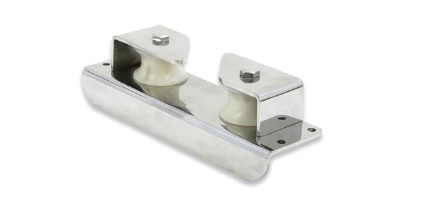

Fairleads CR-NI

CODE WIDTH (MM) LENGTH(MM)
43129 32 140
43013 50 200
43014 65 300

Fairleads CR-NI

CODE WIDTH (MM) LENGTH(MM)
43130 70 200
43131 90 300
