Portholes

Portholes

1

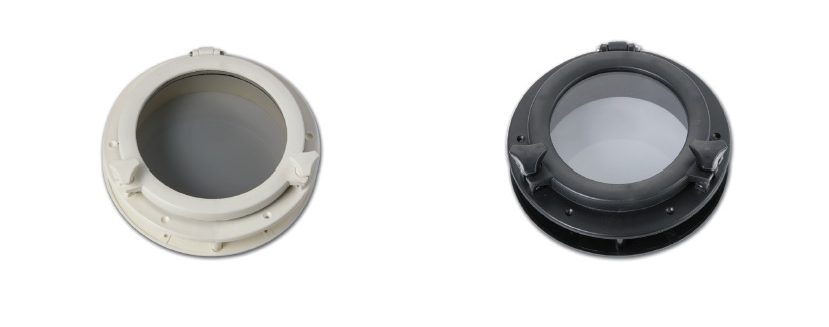

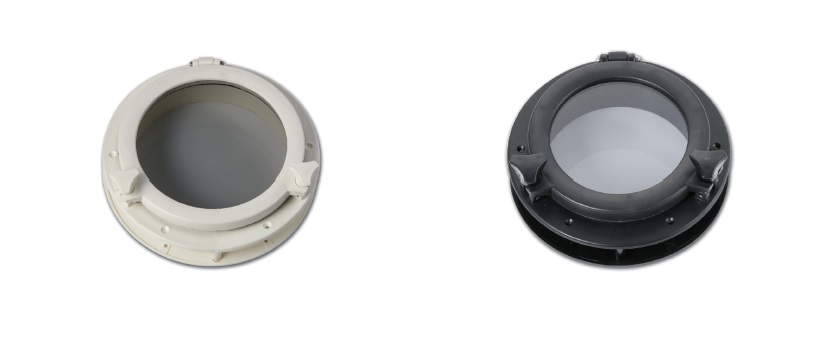

Internal Mounting Portholes Circule

Code Color Mounting Depth(mm) Mounting Dim. (mm) Outer Dim.(mm) Glass Dim. (mm)
10034 White 38 160 215 130
10035 White 38 210 265 180
10042 Black 38 160 215 130
10043 Black 38 210 265 180
2

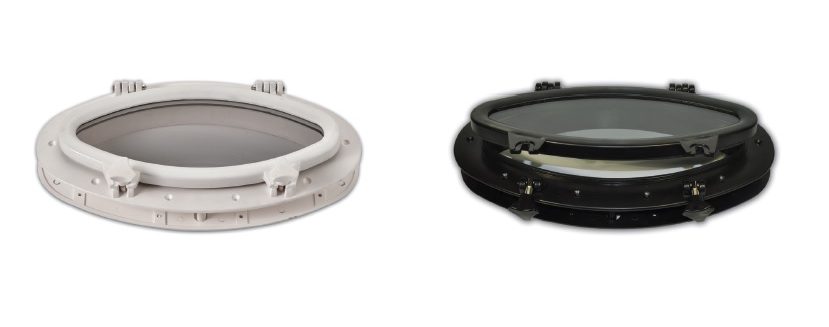

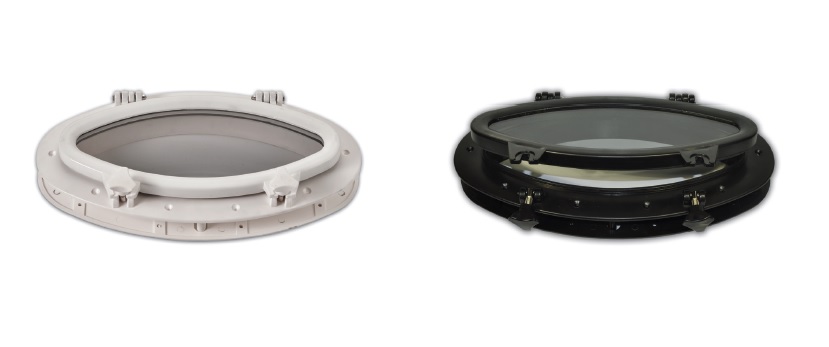

Internal Mounting Portholes Ellipse

Code Color Mounting Depth (mm) Mounting Dim. (mm) Outer Dim. (mm) Glass Dim. (mm)
10036 White 38 340 x 145 400 x 210 315 x 130
10044 Black 38 340 x 145 400 x 210 315 x 130
[stm_spacing lg_spacing=”100″ md_spacing=”30″ sm_spacing=”20″ xs_spacing=”10″]
3

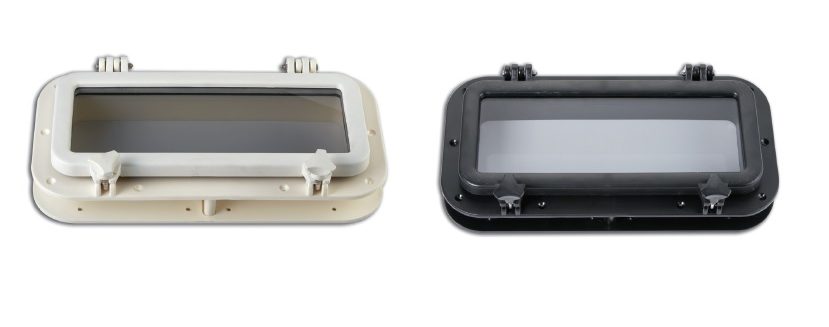

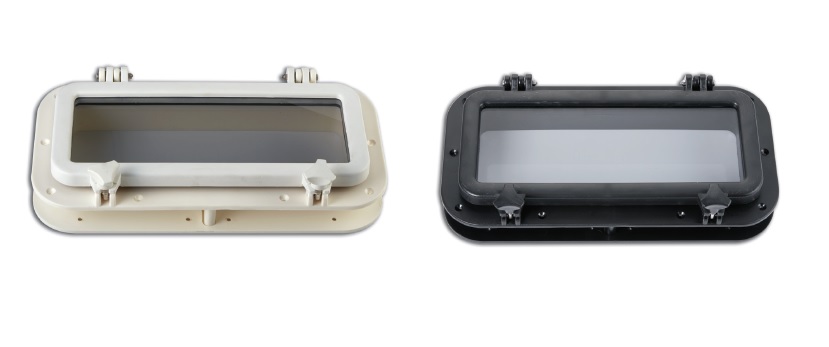

Internal Mounting Portholes Rectangle

Code Color Mounting Depth (mm) Mounting Dim. (mm) Outer Dim. (mm) Glass Dim. (mm)
10037 White 38 330 x 130 400 x 200 110 x 310
10045 Black 38 330 x 130 400 x 200 110 x 310
4

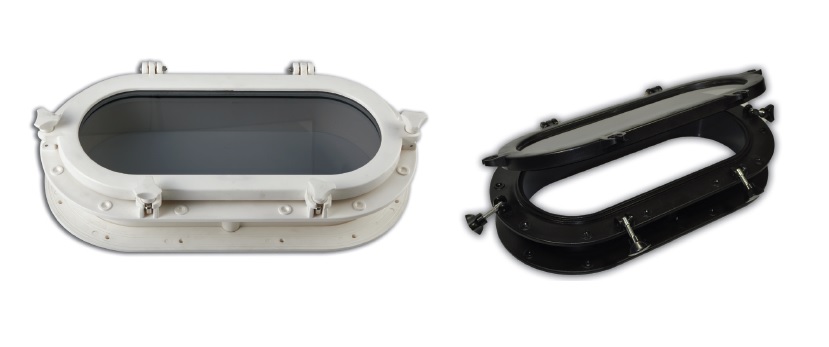

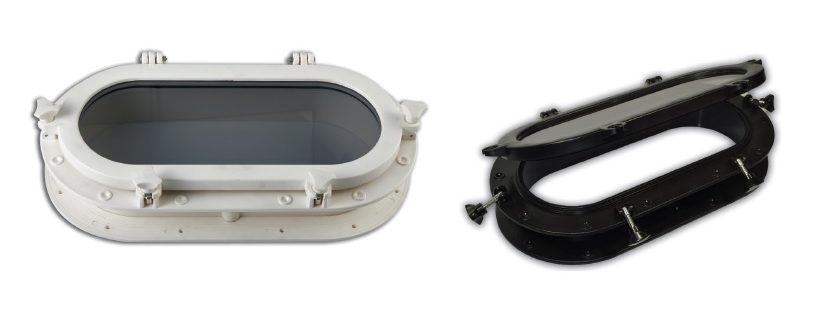

Internal Mounting Portholes Oval

Code Color Mounting Depth((mm) Mounting Dim. (mm) Outer Dim.(mm) Glass Dim. (mm)
10070 White 60 186 x 430 260 x 500 160 x 310
10071 Black 60 186 x 430 260 x 500 160 x 403
10074 White Mosquito Screen
10075 Black Mosquito Screen
[stm_spacing lg_spacing=”100″ md_spacing=”30″ sm_spacing=”20″ xs_spacing=”10″]
5

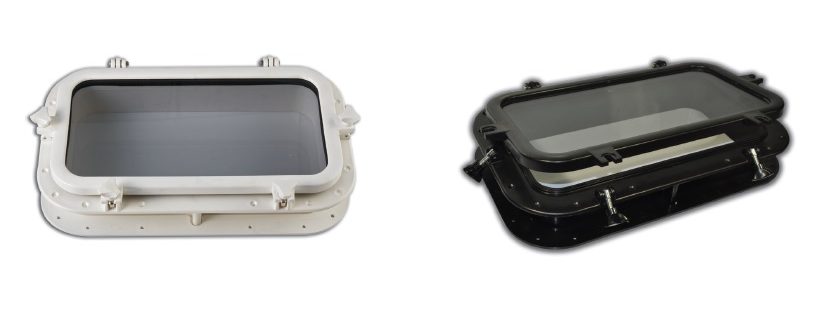

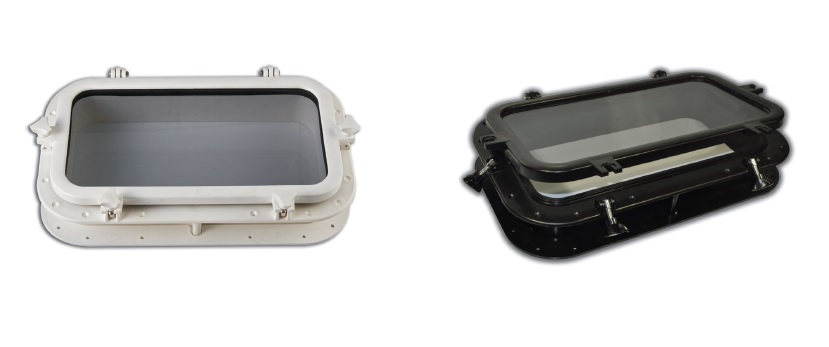

Internal Mounting Portholes Rectangle

Code Color Mounting Depth (mm) Mounting Dim. (mm) Outer Dim.( (mm) Glass Dim. (mm)
10056 White 60 420 x 225 500 x 300 210 x 400
10058 Black 60 420 x 225 500 x 300 210 x 400
6

External Fitting Portholes Rectangle

Code Color Mounting Depth( (mm) Mounting Dim. (mm) Outer Dim.(mm) Glass Dim (mm)
10057 White 60 460 x 260 500 x 300 210 x 400
10059 Black 60 460 x 260 500 x 300 210 x 400
